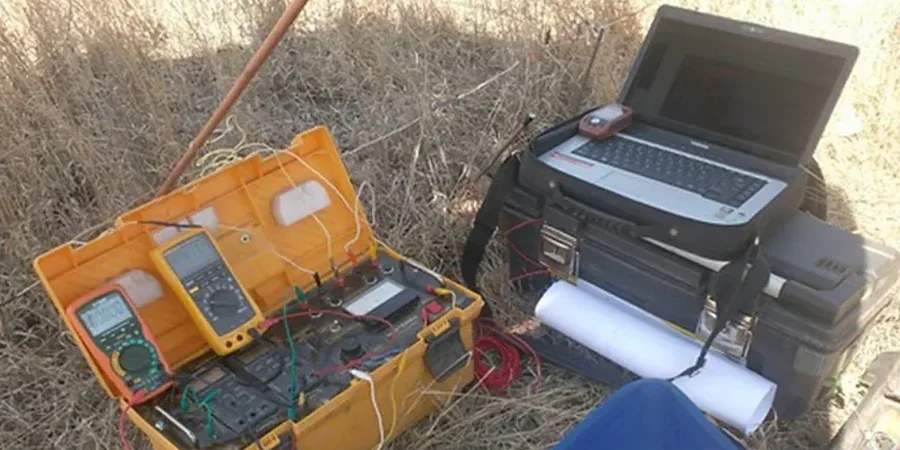

Northwest Arkansas sits on the Springfield Plateau, where Mississippian-age limestone and chert create some of the most unpredictable subsurface conditions in the state. Fayetteville’s karst geology means voids, pinnacled bedrock, and erratic soil depths can appear within a few meters of a clean borehole. The USGS has documented sinkhole density exceeding 10 features per square mile across Washington County. Before drilling or excavating in Fayetteville, a Vertical Electrical Sounding (VES) survey maps these contrasts without disturbing the ground. The method injects DC current through four electrodes and measures apparent resistivity at progressively deeper levels. Clay-filled cutters read low, dry chert reads high, and air-filled cavities produce sharp anomalies. When combined with SPT drilling at key locations, the resistivity profiles help engineers decide where to core, where to bear, and where to avoid. The team applies ASTM D6431 guidelines for field procedures and processes each VES curve with 1D inversion software validated against local borehole logs from Fayetteville’s city archive.
In Fayetteville’s karst, a resistivity anomaly is the first warning that a sinkhole is already forming under the surface.
Scope of work in Fayetteville Arkansas
Critical ground factors in Fayetteville Arkansas
The contrast between the east side of town near the White River alluvium and the upland neighborhoods west of I-49 illustrates the risk clearly. Downtown Fayetteville has 15 to 30 feet of silty clay over weathered limestone; resistivity values there shift gradually, and VES interpretation is straightforward. Move west toward Mount Sequoyah and the Boone Formation outcrops with pinnacles and float chert, producing jagged resistivity curves that inexperienced processors can misread as instrument noise. A missed air-filled cavity 12 feet below a spread footing can turn a routine commercial build into a remediation project costing an extra 40 percent of the foundation budget. The deep excavation risk in karst is not just about collapse during digging; it is about differential settlement over decades as clay plugs in old sinkholes slowly consolidate. VES data flags those zones before the backhoe arrives.
Our services
Our electrical resistivity work in Fayetteville covers two main areas. We keep the deliverables practical because most projects need actionable site data, not academic reports.
Karst and Void Detection Surveys
We run VES arrays across proposed building footprints to locate air-filled or clay-filled cavities in the Boone Formation limestone. The output is a contoured resistivity map showing zones of low integrity, which guides foundation design or targeted verification with test pits.
Bedrock Depth Profiling
On sloping lots near Kessler Mountain or the West Fork river bluffs, we use Schlumberger array soundings to profile the soil-rock interface. Knowing whether bedrock is at 6 feet or 26 feet changes the shoring plan, and resistivity provides that section without drilling every 10 feet.
Common questions
How much does a VES survey cost in Fayetteville?
How deep can Vertical Electrical Sounding reach in the Boone Formation?
With a Schlumberger array and maximum current electrode spacing of 300 feet, we can reliably image to depths of approximately 100 to 150 feet. The actual depth of investigation is limited by the electrical contrast between the overburden and the limestone bedrock, which in Fayetteville is usually strong enough for clear resolution.
Does rain affect the resistivity measurements?
Surface moisture from recent rain can lower contact resistance at the electrodes, which actually improves data quality. However, heavy sustained rain that saturates the upper 3 to 5 feet of soil can slightly reduce the contrast between clay layers and weathered rock. We account for this in the inversion model and schedule surveys during dry windows when possible.
What does a VES report include for my structural engineer?
The deliverable package contains a geoelectric section showing interpreted layer thicknesses and resistivities, a table of modeled depths to bedrock or anomalous zones, the RMS error for each sounding curve, and a site plan with sounding locations georeferenced to the survey boundary. We add a short narrative that translates the resistivity findings into practical geotechnical descriptions.
